Reliable Rainscreen System Installation in the Calgary and Vancouver Metropolitan Areas for Superior Wall Protection
Expert Rainscreen Cladding Installation
We provide precise rainscreen cladding installation to create a ventilated barrier that prevents moisture damage and extends the life of your exterior walls.
Moisture Protection with a Rainscreen
Our rainscreen system in the Calgary and Vancouver metropolitan areas is designed to shield your building from rain infiltration, reducing risks of mold, rot, and structural damage.
Improved Energy Efficiency
By combining rainscreen system installation with proper insulation, we help maintain your building’s thermal performance and reduce heating and cooling costs.
Long-lasting Durability
Rainscreen cladding installation protects your exterior walls from weathering, enhancing durability and preserving your building’s appearance over time.
Durable Rainscreen Cladding Installation for Buildings

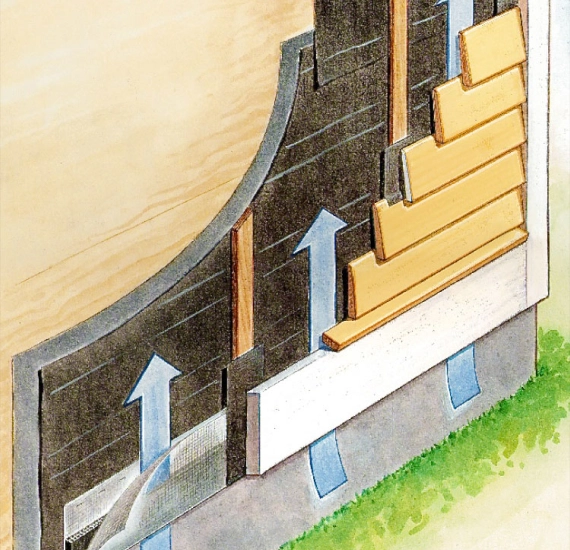

A rainscreen system is an advanced building technique used to protect exterior walls from moisture damage. It involves creating a gap or cavity between the cladding (such as wood, metal, or brick) and the wall structure to allow for ventilation, drainage, and drying. The system essentially acts as a barrier, redirecting rainwater away from the wall and preventing it from penetrating into the building's interior.
Key Components of a Rainscreen System:
- Cladding: The exterior layer, typically made of wood, metal, stone, brick, or composite materials, serves as the first line of defense against the elements. It provides an aesthetically pleasing finish and protects the underlying layers.
- Ventilated Air Gap: A ventilated air gap or cavity (usually between 1 to 2 inches wide) is created between the cladding and the wall’s weather-resistant membrane or sheathing. This gap is crucial for the system to work properly, as it allows air to flow freely behind the cladding and ensures moisture can escape and dry out.
- Weather-Resistant Barrier (WRB): A weather-resistant barrier or vapor barrier (such as a breathable membrane) is installed on the exterior wall sheathing beneath the air gap. This barrier helps keep moisture from infiltrating the building's structural components while still allowing moisture vapor to escape. It serves as a secondary defense after the cladding.
- Insulation (Optional): Some rainscreen systems incorporate insulation between the cladding and the weather-resistant barrier. This can improve energy efficiency by providing additional thermal resistance and reducing heat transfer through the walls.
- Vertical Furring Strips: Furring strips are typically installed vertically on top of the weather-resistant barrier, creating a framework to which the cladding is attached. These strips hold the cladding off the wall, allowing the air gap to function properly.
- Drainage Plane: The bottom of the rainscreen system is typically sloped or equipped with drainage channels to direct water out of the system. This ensures any water that does penetrate the cladding can drain away efficiently and not get trapped inside.
How a Rainscreen System Works:
- Water Resistance: The primary function of the rainscreen is to protect the wall assembly from rainwater. The cladding acts as the first line of defense, while the weather-resistant barrier beneath it prevents any water from seeping into the wall structure.
- Ventilation: The air gap behind the cladding allows for airflow and ventilation. This helps to dry out any moisture that gets past the cladding and barrier before it can cause damage to the underlying structure.
- Drainage: Any water that does manage to get behind the cladding (due to wind-driven rain or other factors) is directed down the cavity and out of the bottom of the rainscreen. The system typically has drainage channels at the base to ensure water is quickly removed from the structure.
- Thermal and Moisture Control: A rainscreen system can work in tandem with the insulation layer, improving the thermal performance of the building. Additionally, by allowing the wall to breathe and dry out, it reduces the risk of mold and mildew growth.
Benefits of a Rainscreen System:
- Moisture Protection: The primary benefit of a rainscreen system is its ability to protect the building from water damage. It prevents rain from penetrating the wall and causing issues like mold, rot, and decay, which can compromise the structural integrity and indoor air quality.
- Improved Durability: By keeping moisture away from the building’s structural components, the rainscreen system helps increase the longevity of the exterior wall and cladding materials.
- Enhanced Insulation Performance: The air gap and ventilation help maintain the effectiveness of insulation by preventing moisture from reducing its thermal properties. A damp or wet insulation layer can become less effective at insulating the building, leading to increased energy costs.
- Energy Efficiency: When combined with insulation, a rainscreen system can improve the overall energy efficiency of the building by reducing heat loss in the winter and preventing overheating in the summer.
- Preventing Mold and Mildew: Moisture buildup in walls can lead to mold and mildew growth, which can damage the building and negatively affect indoor air quality. A rainscreen system reduces this risk by allowing the wall to dry properly.
- Longevity of Cladding: The rainscreen system helps extend the lifespan of exterior cladding by providing a protective layer against the elements, reducing wear and tear caused by rain, wind, and temperature fluctuations.
- Aesthetic Flexibility: Rainscreen systems can be used with a wide range of cladding materials, including wood, metal, brick, and composite panels, allowing for a great deal of flexibility in terms of design and aesthetics.
Common Rainscreen Cladding Materials:
- Wood: Often used for its natural, warm appearance, wood is a popular choice for rainscreen cladding. However, it must be properly treated and maintained to prevent decay and moisture damage.
- Metal: Metals such as aluminum, steel, and zinc are durable, low-maintenance options. They offer a sleek, modern look and can be used for both commercial and residential projects.
- Fiber Cement: Fiber cement boards are another durable and low-maintenance option for rainscreen cladding. They are resistant to rot, insects, and weathering, making them a practical choice for many climates.
- Brick and Stone: Traditional materials like brick and stone can be used in a rainscreen system, offering a more classic, rustic appearance.
- Composite Materials: Engineered composite panels that mimic the look of wood or stone are also used for rainscreen systems. These materials are lightweight, durable, and low-maintenance.
Installation Considerations:
- Proper Airflow: For the rainscreen system to function effectively, it is essential that the air gap behind the cladding is properly ventilated. This typically requires the installation of vents at the top and bottom of the cavity to allow airflow to move freely.
- Waterproofing and Drainage: The weather-resistant barrier must be installed correctly to ensure that water cannot penetrate the building. It’s also important that the bottom of the system is designed with proper drainage to direct water out of the cavity.
- Maintenance: While rainscreen systems are generally low-maintenance, it is still important to inspect the cladding and ventilation openings periodically to ensure they remain clear of debris and functioning as intended.
- Building Codes: Be sure to consult local building codes and regulations when installing a rainscreen system, as certain climates and building types may have specific requirements for moisture management, insulation, and fire safety.
A rainscreen system is a highly effective and long-lasting solution for protecting a building from moisture damage. It helps to manage rainwater, improves air circulation behind cladding, and enhances the durability and energy efficiency of the structure. By providing both ventilation and drainage, it minimizes the risks of water infiltration, mold, and decay while offering flexibility in design.
Whether you're building a new structure or retrofitting an existing one, incorporating a rainscreen system into your design can significantly improve the building's performance, longevity, and comfort.
